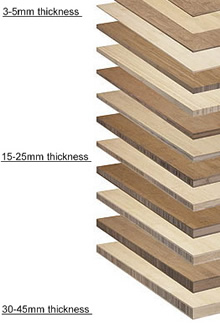

    Zen Bamboo manufactures 3 different types of bamboo panels

    1 ¨C Ply panel : The 1-ply panels are mainly used as a veneer, where the bamboo panel is pressed double sides on a base ( for example MDF or chipboard). Most applications require pressing on both sides of the base, to prevent possible bending.

    Sandwich Panel: The sandwich panel consist of 3 layers of 1-ply panels, where the middle layer is vertical it looks like ¡°¢ñ ¡± construction.

    Muti-ply Panel : The muti-ply panels consist of multiply layers of bamboo,where the middle layer can be either horizontal or vertical pressed.

    All panel types available both Natural & Carbonized colour, horizontal and vertical looks.



    1 ¨C Ply
    panel
    Standard size: 4 x 1220 x 2440mm
                           5 x 1220 x 2440mm






    1 ply solid panel
    Standard size: 12 x 1220 x 2440mm
                            15 x 1220 x 2440mm
                            19 x 1220 x 2440mm
                            19 x 620 x 3000mm






    Sandwich
    panel
    Standard size: 20 x 1220 x 2440mm
                           25 x 1220 x 2440mm
                           30 x 1220 x 2440mm
                           20 x 1220 x 3000mm






    Muti ¨C ply Panel
    Standard size: 35 x 1220 x 2440mm
                           40 x 1220 x 2440mm
                           40 x 620 x 3000mm
                           40 x 620 x 4000mm
                           45 x 1220 x 2440mm
